Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE IGNITION SWITCH ASSEMBLY

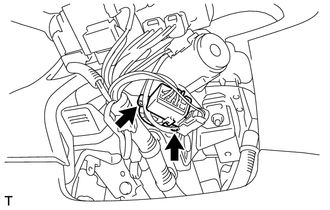

    1. Remove the 2 screws and the ignition switch.
      GTY432301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      GTY438986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector clamp from the ignition switch.
