Removal [08/2016 - ]: Procedure

  1. REMOVE AIR CLEANER INLET ASSEMBLY

    Refer to PROCEDURE - Step 20

  2. REMOVE DUTY VACUUM SWITCHING VALVE

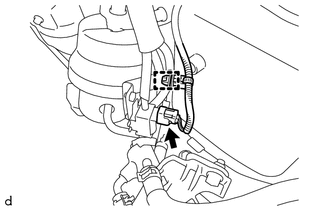

    1. Disconnect the duty vacuum switching valve connector.
      GTY722824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.

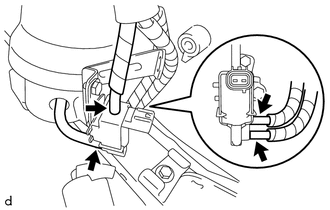

    3. Disconnect the 3 vacuum hoses and hose from the duty vacuum switching valve.
      GTY722765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

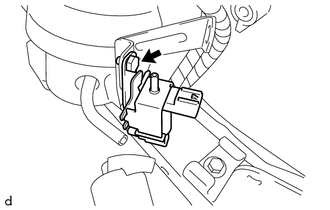

    4. Remove the bolt and duty vacuum switching valve.
      GTY722809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
