Installation [12/2015 - ]: Procedure

1. Install the rear speed sensor with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   Keep the rear speed sensor tip and sensor installation hole free from foreign matter.

2. Install the No. 1 bracket and No. 2 bracket with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

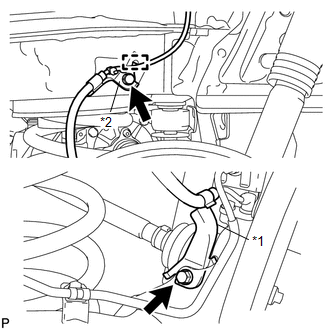

   TEXT IN ILLUSTRATION



   *1	No. 1 Bracket
   *2	No. 2 Bracket

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   NOTE:

   • Be sure to insert the No. 2 bracket into the stopper hole while installing the No. 2 bracket.
   • Do not twist the rear speed sensor wire when installing the brackets.
3. Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel well.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Band Clamp
   *a	Outside
   *b	Inside
   	Gripping Point

   NOTE:

   Make sure that the grommet's band clamp remains on the outside of the vehicle.

4. Hold the grommet and pull it from the inside to the outside of the vehicle. Then secure it in place so that it is not tilted.
   NOTE:

   When pulling out the grommet, do not grip the sensor wire.

5. The direction of the grommet is indicated in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

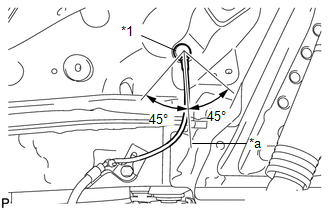

   TEXT IN ILLUSTRATION



   *1	Grommet
   *a	Vertical line

6. Return the rear wheel house liner and engage the 2 clips.
7. Connect the rear speed sensor connector.

Refer to PROCEDURE - Step 14 [12/2015 - 11/2017] Refer to PROCEDURE - Step 18 [11/2017 - ]

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 27 [12/2015 - 11/2017] Refer to PROCEDURE - Step 31 [11/2017 - ]

Refer to PROCEDURE - Step 23 [12/2015 - 11/2017] Refer to PROCEDURE - Step 27 [11/2017 - ]

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

(Refer to TEST MODE PROCEDURE [12/2015 - 11/2017] Refer to TEST MODE PROCEDURE [11/2017 - ] )
