Removal [12/2015 - ]: Procedure

  1. REMOVE LOWER STEERING COLUMN COVER

    (Refer to PROCEDURE - Step 1 )

  2. REMOVE UPPER STEERING COLUMN COVER

    (Refer to PROCEDURE - Step 2 )

  3. REMOVE TRANSPONDER KEY COIL
    1. Disconnect the connector.

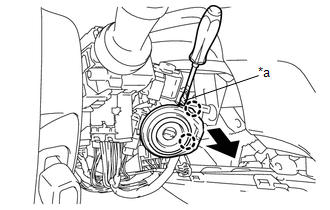

    2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws to remove the transponder key coil.
      GTY727465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
