Installation [08/2015 - 08/2018]: Procedure

TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Temporarily install the rear upper control arm with the 3 bolts and 3 nuts.

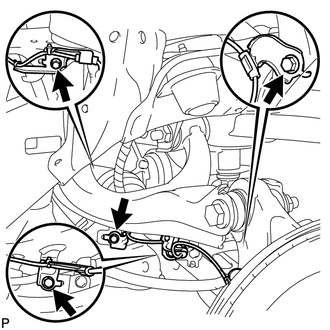

CONNECT REAR SPEED SENSOR WIRE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the rear speed sensor wire with the 4 bolts.
  Torque: 13 N.m (127 kgf/cm, 9 ft.lbf)
2. Connect the speed sensor connector.

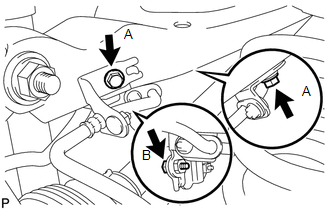

INSTALL REAR BRAKE FLEXIBLE HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the rear brake flexible hose with the 3 bolts.
  - for bolt A
  Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
  - for bolt B
  Torque: 13 N.m (127 kgf/cm, 9 ft.lbf)
INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH
Refer to PROCEDURE - Step 8
INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 1
INSTALL REAR WHEEL
See step 11
STABILIZE SUSPENSION
See step 12
TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH
1. Tighten the 3 bolts and 3 nuts.
  Torque: 185 N.m (1886 kgf/cm, 137 ft.lbf)
INSTALL FUEL TANK ASSEMBLY (for 3UR-FE)
(Refer to INSTALLATION [08/2015 - ] )
INSTALL FUEL TANK ASSEMBLY (for 3UR-FBE)
(Refer to INSTALLATION [08/2015 - 08/2018] )
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
(Refer to ADJUSTMENT [08/2015 - 08/2018] )
