Installation [08/2015 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

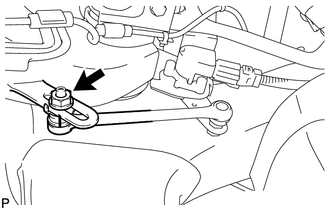

1. Install the rear height control sensor with the nut.

   Torque: 13 N.m (127 kgf.cm, 9 ft.lbf)

2. Connect the rear height control sensor connector.

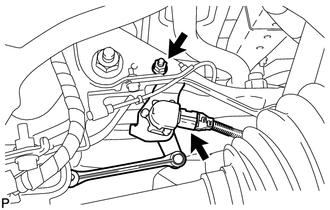

3. Align the matchmark on the rear height control sensor link and bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Install the rear height control sensor link with the nut.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

(Refer to ADJUSTMENT [08/2015 - ] )
