Installation [08/2015 - 08/2018]: Procedure

INSTALL REAR STABILIZER BUSH
1. Install the 2 bushes to the outer side of the bush stoppers on the rear stabilizer bar.
  HINT:

  Install the bush so that the cutout faces the rear of the vehicle.
TEMPORARILY INSTALL REAR STABILIZER BAR
1. Temporarily install the rear stabilizer bar with the 4 bolts.

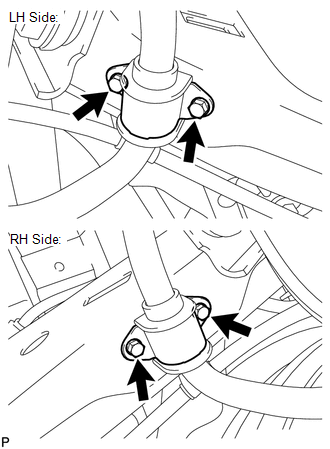

TIGHTEN REAR STABILIZER BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the rear stabilizer bar with the 4 bolts.
  Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

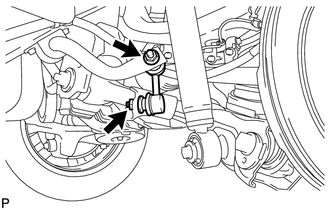

TEMPORARILY INSTALL REAR STABILIZER LINK ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Temporarily install the rear stabilizer link with the 2 nuts.
TEMPORARILY INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
INSTALL PROPELLER SHAFT ASSEMBLY (for 2WD)
(Refer to INSTALLATION [08/2015 - ] )
INSTALL PROPELLER SHAFT ASSEMBLY (for 4WD)
Refer to PROCEDURE - Step 1
REMOVE TRANSFER HEAT INSULATOR (for 4WD)
Refer to PROCEDURE - Step 2
REMOVE PROPELLER SHAFT HEAT INSULATOR (for 4WD)
Refer to PROCEDURE - Step 3
INSTALL EXHAUST PIPE ASSEMBLY TAIL (for 3UR-FE)
Refer to PROCEDURE - Step 12
INSTALL EXHAUST PIPE ASSEMBLY TAIL (for 3UR-FBE)
Refer to PROCEDURE - Step 12
STABILIZE SUSPENSION
See step 12
TIGHTEN REAR STABILIZER LINK ASSEMBLY LH
1. Install the rear stabilizer link with the 2 nuts.
  Torque: 98 N.m (999 kgf/cm, 72 ft.lbf)
TIGHTEN REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
