Installation [08/2015 - ]: Procedure

  1. INSTALL PROPELLER SHAFT ASSEMBLY

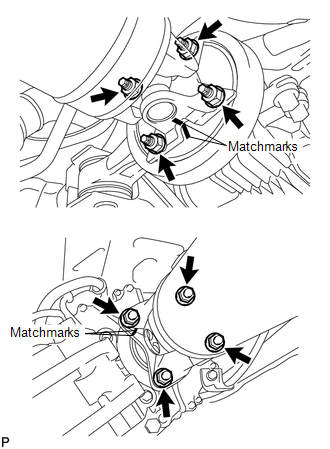

    1. Align the matchmarks on the propeller shaft flange and differential flange.
      GTY588354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the matchmarks on the propeller shaft flange and transfer flange.
    3. Install the propeller shaft assembly with the 8 nuts.

      Torque: 70 N.m (714 kgf/cm, 52 ft.lbf)

  2. INSTALL TRANSFER HEAT INSULATOR

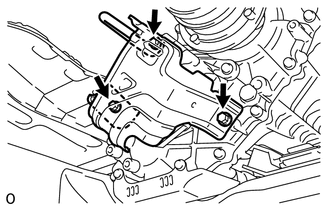

    1. Install the transfer heat insulator with the 3 bolts.
      GTY598089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

  3. INSTALL PROPELLER SHAFT HEAT INSULATOR

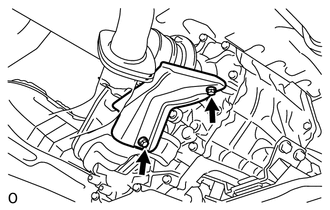

    1. Install the propeller shaft heat insulator with the 2 bolts.
      GTY610859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)
