Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE THROTTLE BODY ASSEMBLY
    1. Slide the clamp and disconnect the No. 4 water by-pass hose from the No. 3 water by-pass pipe.

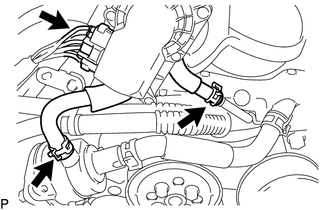

      GTY439452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clamp and disconnect the No. 5 water by-pass hose from the water inlet housing.
    3. Disconnect the throttle body connector.
    4. Remove the 4 bolts, throttle body assembly and gasket.

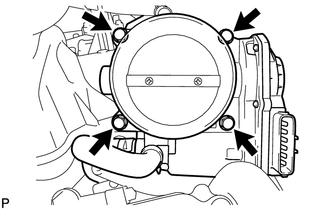

      GTY588680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slide the clamp and remove the No. 4 water by-pass hose from the throttle body assembly.
    6. Slide the clamp and remove the No. 5 water by-pass hose from the throttle body assembly.
