Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 2

  2. DRAIN POWER STEERING FLUID
  3. REMOVE POWER STEERING OIL PRESSURE SWITCH

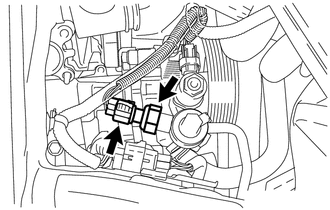

    1. Disconnect the switch connector.
      GTY564537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 24 mm deep socket wrench, remove the oil pressure switch.
    3. Remove the O-ring.
