Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE IGNITION COIL ASSEMBLY

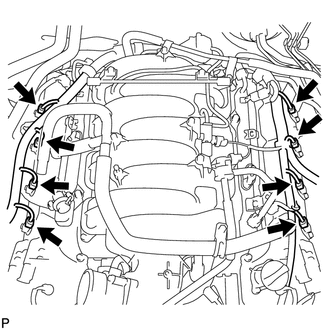

    1. Disconnect the 8 ignition coil connectors.
      GTY597679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts and 8 ignition coils.
  4. REMOVE SPARK PLUG
    1. Using a 16 mm plug wrench, remove the 8 spark plugs.
