Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

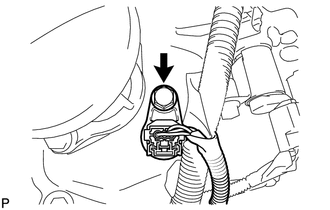

  3. REMOVE CAMSHAFT POSITION SENSOR
    GTY588687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

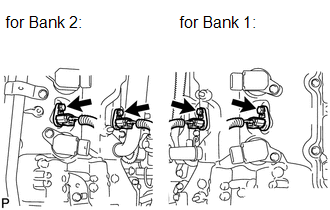

  4. REMOVE VVT SENSOR
    GTY611252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 4 sensor connectors.
    2. Remove the 4 bolts and 4 sensors.
