Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY
    1. Disconnect the air fuel ratio sensor connector.
    2. Disconnect the heated oxygen sensor connector and 2 clamps.

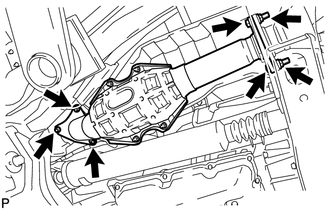

    3. Remove the 2 bolts and 2 nuts from the center exhaust pipe assembly.
      GTY550613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 nuts, 2 gaskets and front No. 2 exhaust pipe sub-assembly.
  2. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00010
      GTY554947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00010
      GTY554947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
