Removal [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2019 - ]

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 11

  4. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 13

  5. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 36

  6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  7. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 38

  8. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 40

  10. REMOVE NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

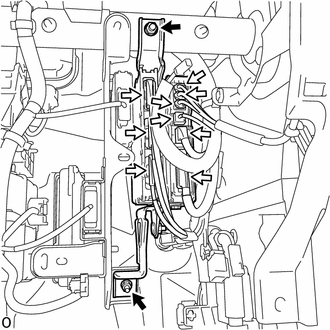

  11. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH CERTIFICATION ECU
    1. Disconnect the 9 connectors.
      GTY905273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
    2. Remove the 2 nuts and DCM (telematics transceiver) with certification ECU.
  12. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. Remove the 2 nuts and DCM (telematics transceiver) with bracket.
      GTY850227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 TELEPHONE BRACKET
    1. Remove the 2 screws and No. 1 telephone bracket.
      GTY850229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 TELEPHONE BRACKET
    1. Remove the 2 screws and No. 2 telephone bracket.
      GTY850228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DCM (TELEMATICS TRANSCEIVER)
