Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

    See step  3 [08/2015 - 10/2016].

    See step  3[10/2016 - 08/2018].

  2. INSTALL FUEL PRESSURE SWITCHING VALVE ASSEMBLY

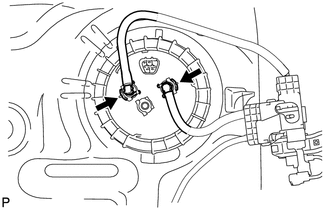

    1. Install the fuel pressure switching valve assembly with the 2 tube joint clips.
      GTY174528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      GTY558601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

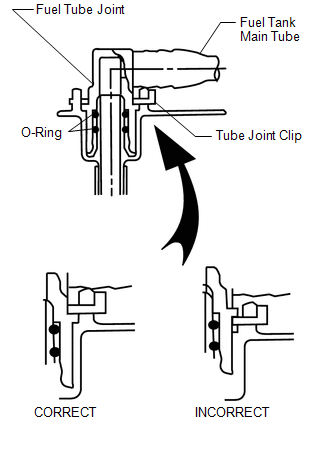

      NOTE:
      • Check that there are no scratches or foreign objects on the connecting parts.
      • Check that the fuel tube joints are inserted securely.
      • Check that the tube joint clips are on the collars of the fuel tube joints.
      • After installing the tube joint clips, check that the fuel tube joints cannot be pulled off.
  3. INSTALL NO. 1 FUEL TANK HEAT INSULATOR

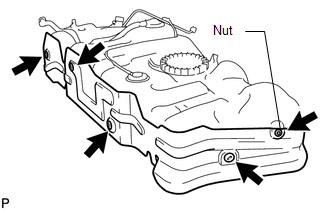

    1. Install the No. 1 fuel tank heat insulator with the 4 clips and nut.
      GTY226878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  4. INSTALL FUEL TANK RETURN TUBE
    1. GTY185388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

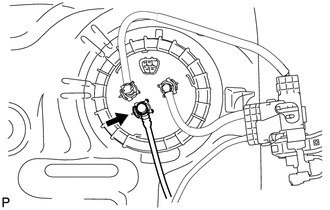

      Install the fuel tank return tube with the tube joint clip.

      GTY558601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that there are no scratches or foreign objects on the connecting parts.
      • Check that the fuel tube joints are inserted securely.
      • Check that the tube joint clips are on the collars of the fuel tube joints.
      • After installing the tube joint clips, check that the fuel tube joints cannot be pulled off.
  5. INSTALL FUEL TANK ASSEMBLY
    1. Set the fuel tank on a transmission jack and raise the fuel tank assembly.
    2. Connect the wire harness clamp, fuel pump connector and fuel pressure switching valve connector to the fuel tank assembly.
      GTY583099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to cut the wirings.

    3. Raise the transmission jack.
    4. Install the 2 fuel tank bands with the 2 pins and 2 clips.
      GTY611451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the 2 fuel tank bands with the 2 bolts.

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

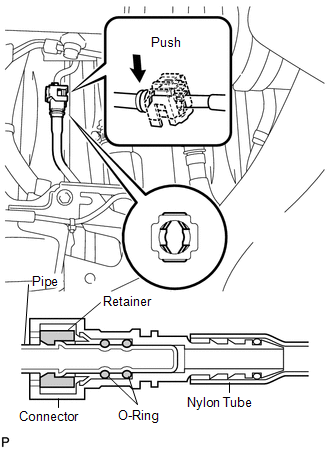

    6. Connect the fuel tank breather tube to the fuel tank inlet pipe sub-assembly.
      GTY584701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before connecting the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.

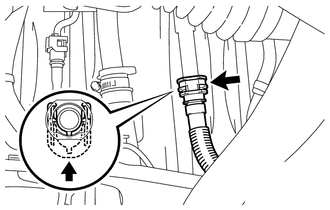

    7. Connect the vent line hose and push down on the retainer.
      GTY541948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before connecting the hose, make sure that it is not damaged. Make sure that there is no foreign matter present on the connecting surfaces.
      • After connecting, check if the hose and the connector are securely connected by pulling on them.
    8. Connect the fuel tank to filler pipe hose to the fuel tank assembly.
      GTY611026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT FUEL TANK RETURN TUBE
    GTY541228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

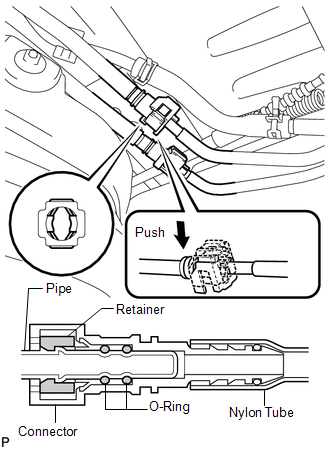

    1. Connect the fuel tank return tube.

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before connecting the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
    2. Attach the lock claws to the connector by pushing down on the cover, as shown in the illustration.
  7. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

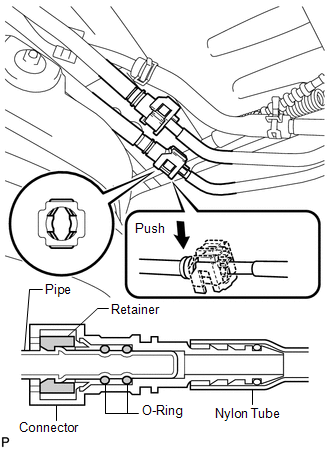

    1. Connect the fuel tank main tube.
      GTY549410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Push the parts together firmly until a "click" sound is heard.

      NOTE:
      • Before connecting the tube connectors to the pipes, check if there is any damage or foreign matter in the connectors.
      • After the connection, check if the connectors and pipes are securely connected by trying to pull them apart.
    2. Attach the lock claws to the connector by pushing down on the cover, as shown in the illustration.
    3. GTY583101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the fuel pressure switching valve with the bolt.

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

  8. INSTALL FUEL TANK CAP
  9. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1
