Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE
    1. Discharge the fuel system pressure (Refer to PRECAUTION [08/2015 - 08/2018] ).
  2. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. DISCONNECT NO. 3 VENTILATION HOSE

    See step  7

  5. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE FUEL PRESSURE PULSATION DAMPER CAP

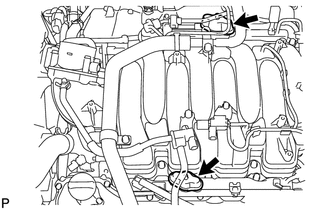

    1. GTY611201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 fuel pressure pulsation damper caps.

  8. REMOVE FUEL PRESSURE PULSATION DAMPER COVER

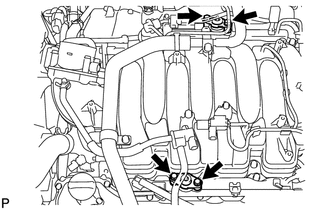

    1. GTY610906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and 2 fuel pressure pulsation damper covers.

  9. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

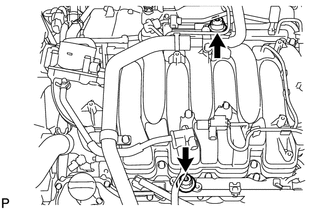

    1. GTY610908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Pull the 2 fuel pressure pulsation dampers out of the fuel delivery pipes to remove them.
