Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] , or refer to PRECAUTION [08/2017 - 08/2019] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 2

  5. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

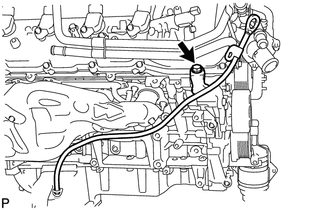

    1. Remove the dipstick.
    2. Disconnect the wire harness clamp.
    3. Remove the bolt and dipstick guide.
      GTY607996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the dipstick guide.
  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE FRONT NO. 3 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 12

  8. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 16

  9. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 17

  10. REMOVE STARTER COVER
    1. Remove the 3 bolts and starter cover.
      GTY609950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE STARTER ASSEMBLY

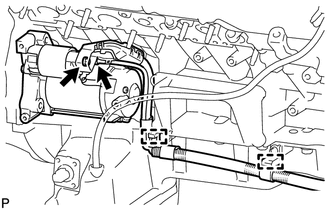

    1. Detach the 2 wire harness clamps.
      GTY547422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the starter connector.
    3. Remove the nut and disconnect the starter wire.

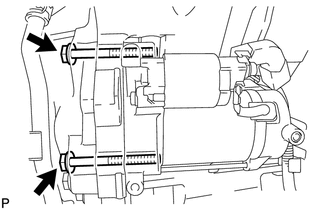

    4. Remove the 2 bolts and starter.
      GTY599469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

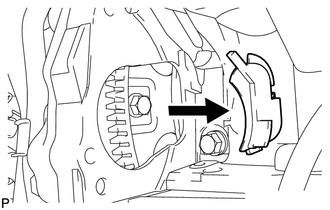

    5. Remove the flywheel housing side cover.
      GTY611378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
