Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. CUSTOMIZE INFORMATION (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 3 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 3 [08/2017 - 08/2019]

  2. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 8 [08/2017 - 08/2019]

  3. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

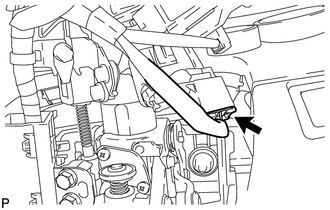

    1. Disconnect the ignition or starter switch assembly connector.
      GTY541938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

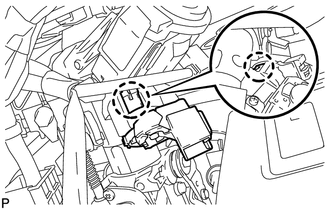

    2. Detach the 2 claws and remove the ignition or starter switch assembly.
      GTY611379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
