Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. DISCONNECT PURGE LINE HOSE
    1. Disconnect the 2 purge line hoses.

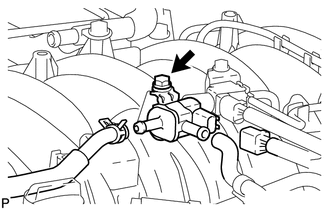

  3. REMOVE PURGE VSV
    1. Disconnect the connector.
      GTY147689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and purge VSV.
