Removal [08/2015 - ]: Procedure

Refer to PROCEDURE - Step 4

1. Remove the 3 bolts and move the connector holder block so that the ECM can be removed in the next step.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

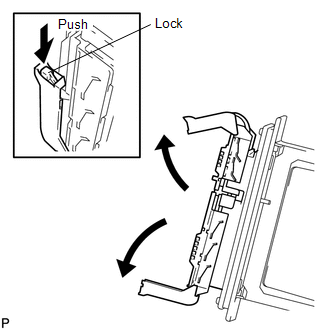

1. Raise the 2 levers while pushing the locks on the 2 levers.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

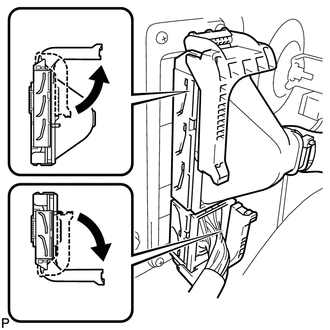

   Make sure that the lock lever is raised 90° as shown in the illustration before disconnecting the connectors. Failure to do this may cause the connectors to break.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the 2 connectors.
3. Remove the 4 bolts and ECM.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Peel off the rubber part of the gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Spray gasket remover or equivalent on the remaining tape of the gasket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When using gasket remover or equivalent, cover the ECM connector with a cloth.

3. Remove the tape of the gasket without using bladed objects.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
