Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to:

    PROCEDURE - Step 2 [08/2015 - 08/2019] , or refer to

    PROCEDURE - Step 2 [08/2019 - 08/2021] , or refer to

    PROCEDURE - Step 2 [08/2021 - ]

  3. REMOVE FAN AND GENERATOR V BELT

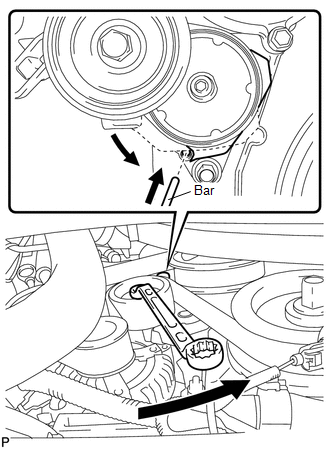

    1. While turning the belt tensioner counterclockwise, align the service hole for the belt tensioner and the belt tensioner fixing position, and then insert a bar of 5 mm (0.197 in.) into the service hole to fix the belt tensioner in place.
      GTY599077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

    2. Remove the fan and generator V belt.
