Installation [08/2015 - ]: Procedure

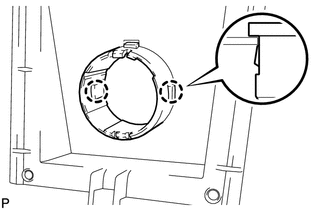

  1. INSTALL POWER OUTLET SOCKET COVER NO. 2
    1. Engage the 2 claws and install the power outlet socket cover.
      GTY590117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

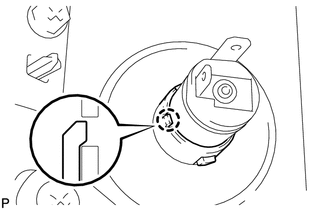

  2. INSTALL POWER OUTLET SOCKET ASSEMBLY
    1. Engage the claw and install the power outlet socket assembly.
      GTY212167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
