Installation [08/2015 - ]: Procedure

  1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Attach the 4 claws and install the air conditioning control.

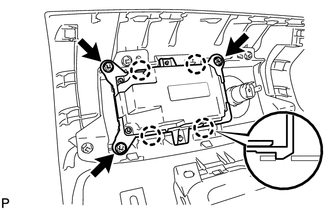

      GTY556805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.
  2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Attach the 2 clamps and install the console rear end panel.

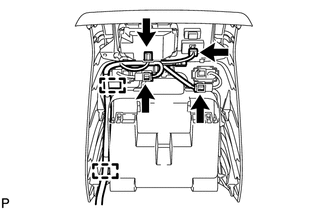

      GTY611556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 connectors.
    3. Attach the 6 clips and install the console rear end panel.

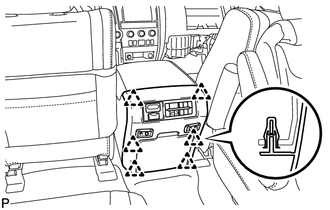

      GTY610797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
