Installation [08/2015 - ]: Procedure

  1. INSTALL POWER OUTLET SOCKET ASSEMBLY

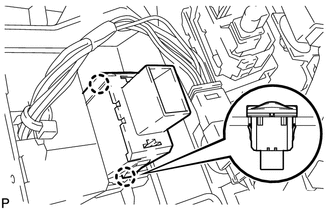

    1. Engage the 2 claws and install the power outlet socket assembly.
      GTY590120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
