Installation [08/2015 - 08/2017]: Procedure

INSTALL BRAKE BOOSTER ASSEMBLY

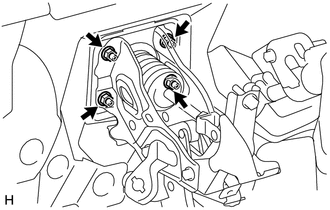

Install the brake booster with the 4 nuts.

Torque: 15 N.m (155 kgf/cm, 11 ft.lbf)

INSTALL PUSH ROD PIN
See step 3
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 54
INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 56
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 46
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 48
CONNECT BRAKE BOOSTER CONNECTOR
1. Connect the 2 brake booster connectors to the brake booster.
CONNECT VACUUM HOSE ASSEMBLY
1. Connect the vacuum hose onto the check valve.
  NOTE:
  Do not use lubricant when installing a vacuum hose on the brake booster and check valve sides.
INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
1. Install the brake master cylinder sub-assembly (Refer to INSTALLATION [08/2015 - 08/2017] ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).
CHECK AND ADJUST BRAKE PEDAL
1. Check and adjust brake pedal (Refer to ADJUSTMENT [08/2015 - 08/2017] ).
CHECK BRAKE BOOSTER
See step 1
BLEED BRAKE SYSTEM
See step 2
