Removal [08/2019 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  12

  2. REMOVE COWL SIDE TRIM BOARD LH

    See step  14

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    See step  16

  4. REMOVE FRONT PILLAR GARNISH LH

    See step  26

  5. REMOVE INSTRUMENT SIDE PANEL LH

    See step  15

  6. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    See step  17

  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.
      GTY177629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    GTY611645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 12 clips and remove the upper console panel sub-assembly.
  10. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    GTY556193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the shift lever to N.
    2. Remove the clip.
    3. Detach the 6 clips and remove the rear upper console panel sub-assembly.
    4. Disconnect the connector.
  11. REMOVE REAR CONSOLE BOX POCKET
    GTY550529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear console box pocket.
  12. REMOVE CONSOLE BOX CARPET
    GTY550530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the console box carpet.
  13. REMOVE REAR CONSOLE BOX ASSEMBLY
    GTY600170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Remove the 4 bolts and 2 screws.

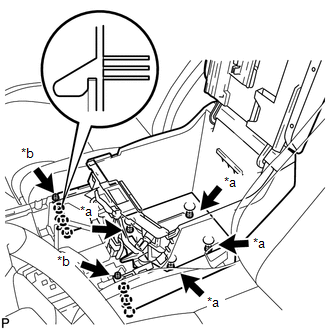

      GTY920792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw
    3. Detach the 6 claws and remove the rear console box assembly.
  14. REMOVE FRONT CONSOLE BOX

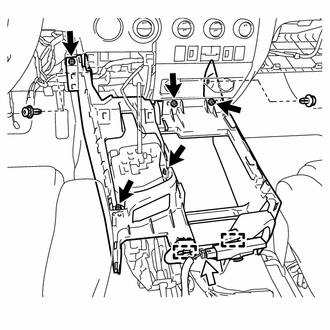

    GTY847707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Screw
    Connector
    1. Disconnect the connector and detach the 2 clamps.
    2. Remove the 2 clips.
    3. Remove the 5 screws and the front console box.
