Removal [08/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  2. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  3. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  4. REMOVE REAR SPOILER COVER
    1. Disconnect the connector.

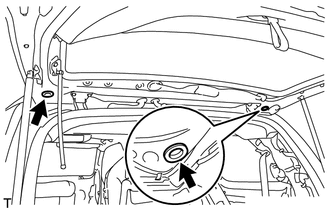

    2. Remove the 2 hole plugs.
      GTY596335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

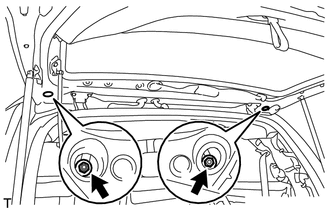

    3. Remove the 2 nuts.
      GTY610440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

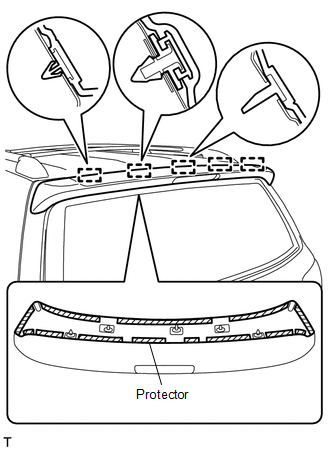

    4. Disengage the 5 pins and remove the rear spoiler.
      GTY563839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
