Removal [08/2015 - ]: Procedure

  1. REMOVE POWER BACK DOOR ROD (w/ Power Back Door)

    Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  2. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  4. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  5. REMOVE BACK DOOR STRAP COVER

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  6. REMOVE BACK DOOR PULL STRAP

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  7. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 10 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  8. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  9. REMOVE BACK DOOR LOCK PROTECTOR

    Refer to PROCEDURE - Step 34 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 34 [08/2019 - ]

  10. REMOVE BACK DOOR LOCK (w/o Power Back Door)

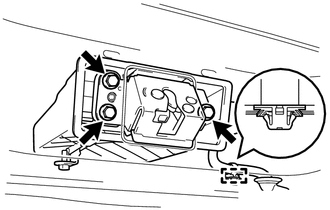

    GTY605350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Disengage the clamp.
    3. Remove the 3 bolts and back door lock.
  11. REMOVE BACK DOOR LOCK (w/ Power Back Door)

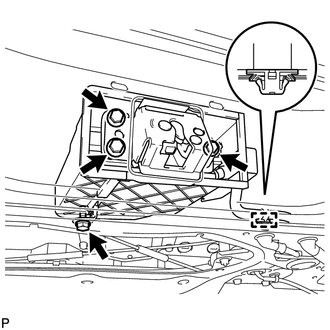

    GTY611341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Disengage the clamp.
    3. Remove the 4 bolts and back door lock.
