Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE FRONT END PANEL

    Refer to PROCEDURE - Step 2

  2. REMOVE HEADLIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY

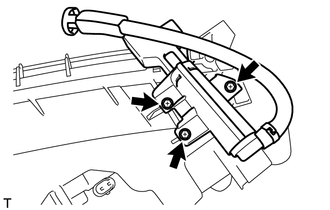

    1. Remove the 3 screws and headlight washer actuator sub-assembly LH.
      GTY611174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
