Removal [08/2015 - 08/2017]: Procedure

  1. REMOVE FRONT END PANEL (w/o Headlight Cleaner System)
    1. Remove the 2 clips.
      GTY596312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the front end panel.
      GTY596310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT END PANEL (w/ Headlight Cleaner System)
    1. Remove the 2 clips.
      GTY596312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

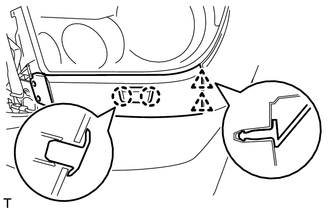

    2. Disengage the 2 claws and 2 clips and remove the front end panel.
      GTY596315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEADLIGHT ASSEMBLY

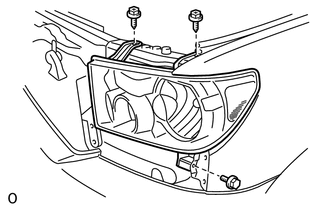

    1. Remove the 2 screws.
      GTY588570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disconnect the connectors, and then remove the headlight.
