Headlight (HI-BEAM) Circuit [08/2015 - 08/2017]: Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM (HEADLIGHT (HIGH))
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Main Body / Active Test / Head Light Hi
- Check that the headlight (high) turns on/off.MAIN BODY
Tester Display Test Part Control Range Diagnostic Note Head Light Hi Headlight (High) ON or OFF - OK
Headlight (High) turns on/off.
Result:
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2017] )
Result:
NG
See step 2
- INSPECT FUSE (HEAD LH, HEAD RH)

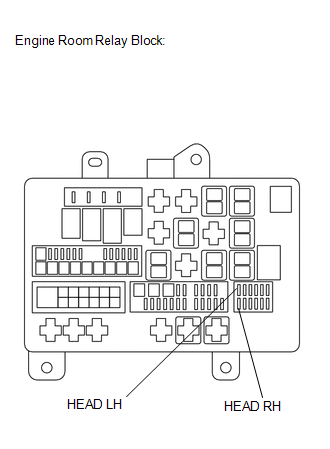

- Remove the HEAD LH and HEAD RH fuse from the engine room relay block.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition HEAD LH fuse Always Below 1 Ω HEAD RH fuse Always Below 1 Ω - Reinstall the HEAD LH and HEAD RH fuses.
Result:
NG
REPLACE FUSE
Result:
OK
See step 3
- Remove the HEAD LH and HEAD RH fuse from the engine room relay block.
- INSPECT HEADLIGHT (HIGH) BULB
- Temporarily replace the headlight (high) bulb with a new or normally functioning one (Refer to PROCEDURE - Step 3 ).
- Check that the headlight (high) come on.
OK
Headlight (high) come on.
Result:
OK
END
Result:
NG
See step 4
- CHECK HARNESS AND CONNECTOR (HEADLIGHT (HIGH) BULB - HEADLIGHT DIMMER RELAY)
- for LH:
- Disconnect the A10 headlight (high) LH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition A10-2 - Body ground Light control switch HEAD, dimmer switch High 11 to 14 V Light control switch HEAD, dimmer switch except High Below 1 V - Reconnect the headlight (high) LH connector.
- for RH:
- Disconnect the A11 headlight (high) RH connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition A11-2 - Body ground Light control switch HEAD, dimmer switch High 11 to 14 V Light control switch HEAD, dimmer switch except High Below 1 V - Reconnect the headlight (high) RH connector.
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR (HEADLIGHT HIGH BULB - BODY GROUND)
Result:
NG
See step 5
- for LH:
- INSPECT HEADLIGHT DIMMER RELAY (DIM)
- Remove the DIM relay from the engine room relay block.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 When battery voltage is not applied to terminals 1 and 2 10 kΩ or higher When battery voltage is applied to terminals 1 and 2 Below 1 Ω - Reinstall the DIM relay.
Result:
NG
REPLACE DIM RELAY
Result:
OK
See step 6
- CHECK HARNESS AND CONNECTOR (DIM RELAY - HEAD RELAY)
- Remove the DIM relay from the engine room relay block.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition DIM relay terminal 1 - Body ground Light control switch HEAD, dimmer switch Low 11 to 14 V DIM relay terminal 3 - Body ground Light control switch HEAD, dimmer switch Low 11 to 14 V - Reinstall the DIM relay.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7

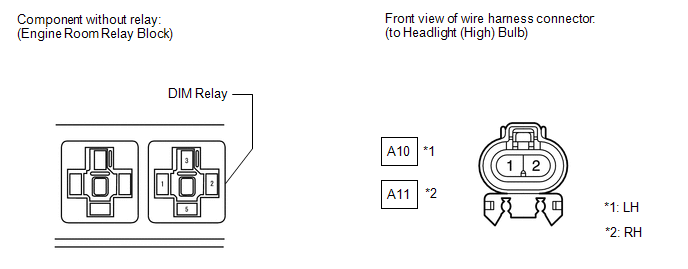

- CHECK HARNESS AND CONNECTOR (DIM RELAY - HEADLIGHT (HIGH) BULB)
- Remove the DIM relay from the engine room relay block.
- for LH:
- Disconnect the A10 headlight (high) LH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition DIM relay terminal 5 - A10-2 Always Below 1 Ω DIM relay terminal 5 - Body ground Always 10 kΩ or higher - Reconnect the headlight (high) LH connector.
- for RH:
- Disconnect the A11 headlight (high) RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition DIM relay terminal 5 - A11-2 Always Below 1 Ω DIM relay terminal 5 - Body ground Always 10 kΩ or higher - Reconnect the headlight (high) RH connector.
- Reinstall the DIM relay.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- Remove the DIM relay from the engine room relay block.
- CHECK HARNESS AND CONNECTOR (DIM RELAY - MAIN BODY ECU)
- Disconnect the DB main body ECU connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition DB-16 - Body ground Light control switch HEAD 11 to 14 V - Reconnect the main body ECU connector.
Result:
OK
REPLACE MAIN BODY ECU
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
