Disassembly [08/2015 - 08/2017]: Procedure

  1. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE CLEARANCE LIGHT BULB
    1. Turn the clearance light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.

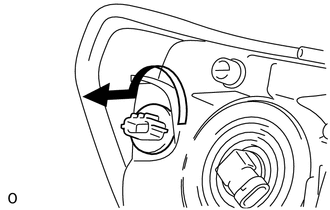

      GTY207392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clearance light bulb from the light socket.
  3. REMOVE NO. 2 HEADLIGHT BULB
    1. Turn the No. 2 headlight bulb, in the direction indicated by the arrow in the illustration, to remove it.

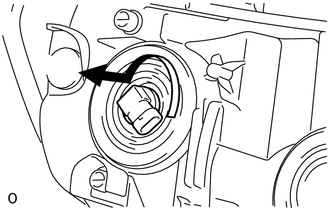

      GTY186489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass with your fingers.

  4. REMOVE FRONT TURN SIGNAL LIGHT BULB
    1. Turn the front turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.

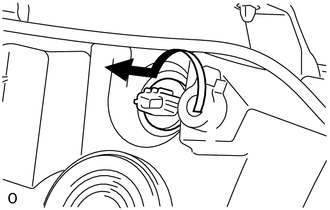

      GTY207393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front turn signal light bulb from the light socket.
  5. REMOVE NO. 1 HEADLIGHT BULB
    1. Turn the No. 1 headlight bulb, in the direction indicated by the arrow in the illustration, to remove it.

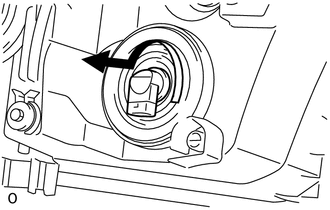

      GTY231589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass with your fingers.
