Removal [11/2018 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. for Automatic Transaxle:
    2. for HV Model:
  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [11/2018 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - ]

  3. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

    Refer to PROCEDURE - Step 3 [11/2018 - 12/2021] , or refer to PROCEDURE - Step 3 [12/2021 - ]

  4. REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

    Refer to PROCEDURE - Step 4 [11/2018 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - ]

  5. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

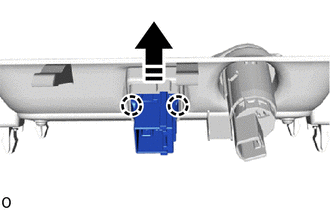

    1. Detach the claw and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
      GTY888991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
