Removal [11/2018 - 12/2021]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. for Automatic Transaxle:
    2. for HV Model:
  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

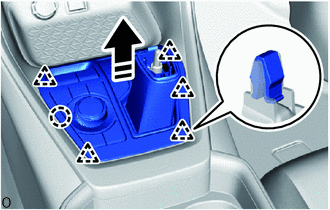

    1. Lift up in the direction indicated by the arrow shown in the illustration to detach the claw and clip and remove the upper console panel sub-assembly.
      GTY872644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

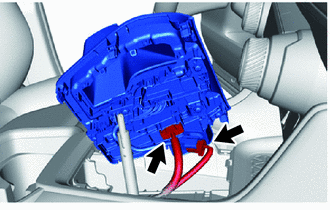

    2. Disconnect the 2 connectors.
      GTY862785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

    Refer to PROCEDURE - Step 3

  4. REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)
    1. Rotate in the direction indicated by the arrow (1) shown in the illustration to detach the clip.
      GTY873545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull in the direction indicated by the arrow (2) shown in the illustration to detach the guide and remove the upper console box.

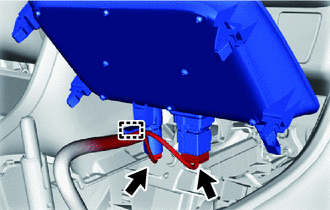

    3. Detach the clamp and disconnect the 2 connectors.
      GTY863657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

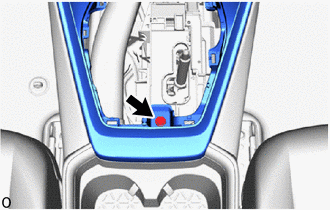

    1. Remove the bolt.
      GTY853753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

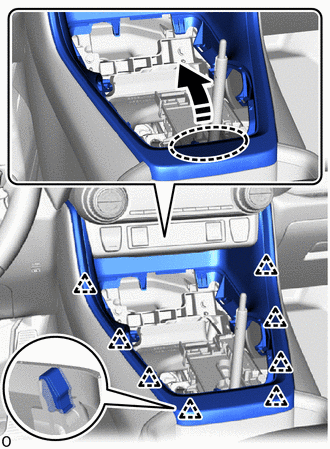

    2. Place your hand at the position shown in the illustration and lift up in the direction indicated by the arrow to detach the clip.
      GTY846514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

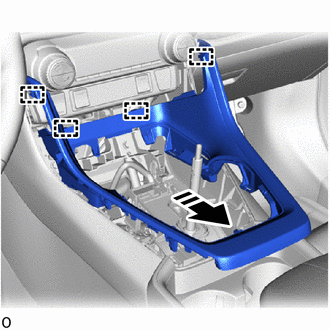

    3. Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the rear upper console panel sub-assembly.
      GTY926373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
    1. Place both hands at the position shown in the illustration and lift up in the direction indicated by the arrow to detach the clip and guide and remove the console cup holder box sub-assembly.
      GTY855767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. w/ Illumination:

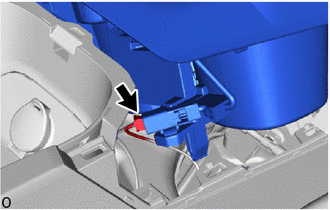

      1. Disconnect the connector.
        GTY929621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY

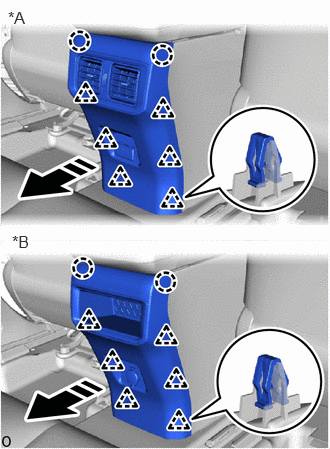

    1. Pull in the direction indicated by the arrow to detach the clip and claw.
      GTY900303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Rear Register Duct
      *B w/o Rear Register Duct
      Remove in this Direction
    2. Disconnect each connector and remove the rear console end panel sub-assembly.
  8. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

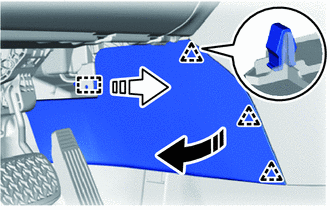

    1. Rotate in the direction indicated by the arrow (1) shown in the illustration to detach the clip.
      GTY888923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull in the direction indicated by the arrow (2) shown in the illustration to detach the guide and remove the front No. 2 console box insert.
  9. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

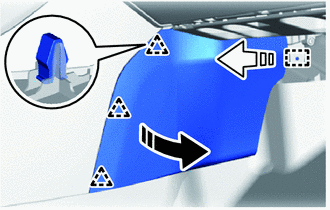

    1. Rotate in the direction indicated by the arrow (1) shown in the illustration to detach the clip.
      GTY938461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull in the direction indicated by the arrow (2) shown in the illustration to detach the guide and remove the front No. 1 console box insert.
  10. REMOVE CONSOLE BOX POCKET (w/ Console Box Tray)

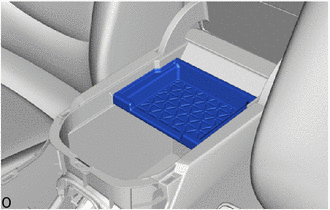

    1. Remove the console box pocket.
      GTY853773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONSOLE BOX CARPET

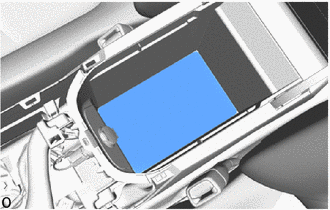

    1. Remove the console box carpet.
      GTY853766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX ASSEMBLY

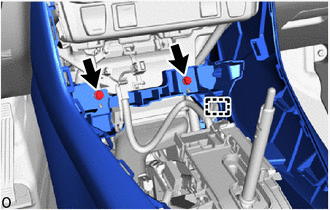

    1. Detach the clamp and remove the 2 bolts.
      GTY929623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector.

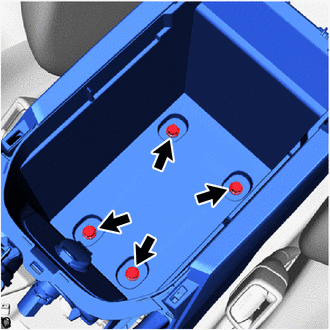

    3. Remove the 4 bolts.
      GTY853767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

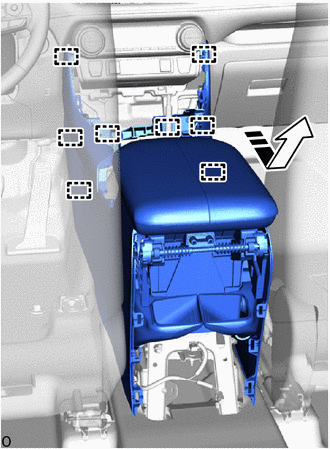

    4. While avoiding the shift lever, pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the console box assembly.
      GTY914679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
