Removal [09/2016 - 12/2018]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 4 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 5

  6. REMOVE DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 6

  7. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 7

  8. REMOVE DECK TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  9. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  12. REMOVE REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  13. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 8

  14. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 14

  15. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the rear door opening trim weatherstrip LH.
  16. REMOVE REAR UNDER SIDE COVER LH

    Refer to PROCEDURE - Step 31

  17. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 32

  18. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 33

  19. REMOVE ROPE HOOK (w/o Garage Door Opener System)

    Refer to PROCEDURE - Step 34

  20. REMOVE NO. 2 ROPE HOOK (w/o Garage Door Opener System)

    Refer to PROCEDURE - Step 35

  21. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/ Garage Door Opener System)

    Refer to PROCEDURE - Step 36

  22. REMOVE TONNEAU COVER HOOK A (w/ Garage Door Opener System)

    Refer to PROCEDURE - Step 37

  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 38

  24. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

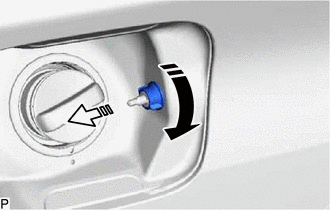

    1. Turn and remove the fuel filler opening lid lock retainer as indicated by the arrows, in the order shown in the illustration.
      GTY597356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction (1)
      Remove in this Direction (2)
  25. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

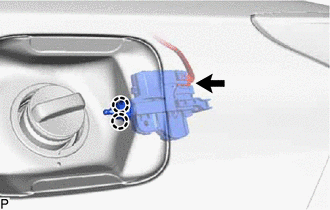

    1. Disconnect the connector.
      GTY608206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the fuel lid lock with motor assembly.
