Reassembly [09/2016 - ]: Procedure

  1. INSTALL SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 1 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 1 [07/2020 - ]

  2. INSTALL SPOT LIGHT COVER

    Refer to PROCEDURE - Step 2 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 2 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 2 [07/2020 - ]

  3. INSTALL EV CHARGER LID INDICATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL FUEL FILLER OPENING LID HINGE SPRING

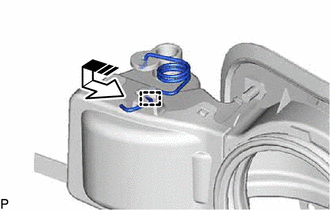

    1. Engage the guide to install the fuel filler opening lid hinge spring as shown in the illustration.
      GTY712930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL PUSH START SWITCH BRACKET

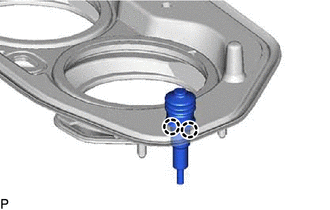

    1. Engage the 2 claws to install the push start switch bracket.
      GTY740597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
