Installation [06/2015 - 11/2018]: Procedure

  1. INSTALL REAR AXLE CARRIER BUSH LH
    1. When reusing the rear axle beam assembly:
      1. Align the alignment mark on a new rear axle carrier bushing LH with the matchmark on the rear axle beam assembly and temporarily install the rear axle carrier bushing LH to the rear axle beam assembly.

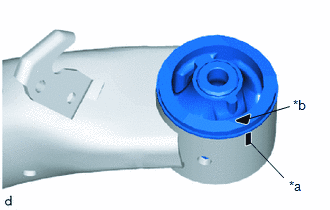

        GTY607775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Matchmark
        *b Alignment mark
        NOTE:

        Be sure to install the rear axle carrier bushing LH in the same direction as it was before removal. The rear axle carrier bushing LH has to be installed in a specific direction.

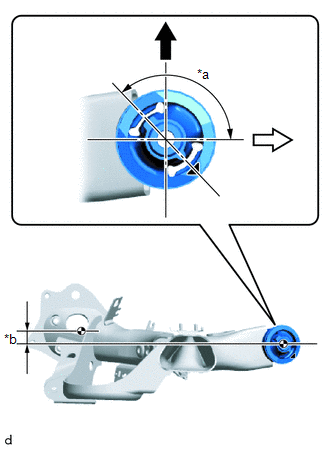

    2. GTY589978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 135°
      *b 48.5 mm (1.91 in.)
      Upper of the Vehicle
      Front of the Vehicle

      When using a new rear axle beam assembly:

      1. Temporarily install a new rear axle carrier bushing LH as shown in the illustration.
        NOTE:

        Be sure to install the rear axle carrier bushing as shown in the illustration. The rear axle carrier bushing has to be installed in a specific direction.

    3. Using SST, install the rear axle carrier bushing LH to the rear axle beam assembly.
      • SST: 09710-30012
        1. 09710-04101
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04030
        4. 09954-04030
        5. 09955-04031
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60010
        1. 09951-00620
      NOTE:
      • Do not damage the rubber portion when installing the rear axle carrier bushing.
      • Apply grease to the threads and tip of the SST center bolt before use.

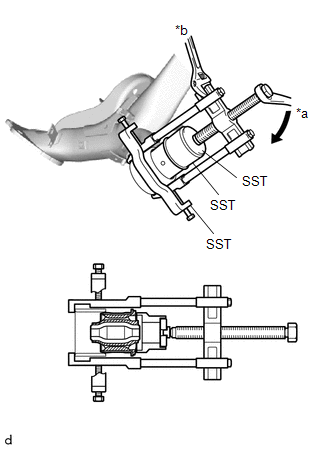

      GTY545726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
  2. INSTALL REAR AXLE CARRIER BUSH RH

    HINT:

    Use the same procedure for the LH side.

  3. INSTALL REAR AXLE BEAM DYNAMIC DAMPER LH
    1. Install the rear axle beam dynamic damper LH to the rear axle beam assembly with the 2 nuts.

      Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

  4. INSTALL REAR AXLE BEAM DYNAMIC DAMPER

    HINT:

    Use the same procedure for the LH side.

  5. TEMPORARILY TIGHTEN REAR AXLE BEAM ASSEMBLY
    1. Slowly jack up the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools, and temporarily install the rear axle beam assembly to the vehicle with the 2 bolts (B).

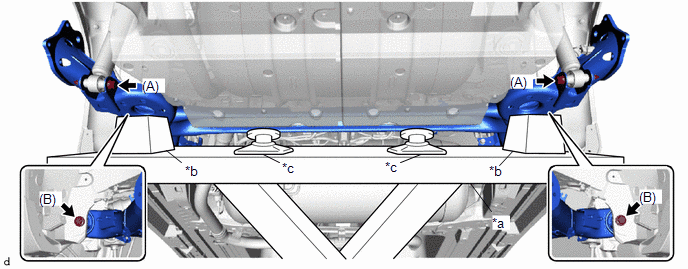

      GTY569494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Universal Engine Lifter *b Wooden Block
      *c Height Adjustment Attachment - -
      NOTE:

      Make sure to secure the rear axle beam assembly to prevent it from dropping.

    2. Temporarily install the rear axle beam assembly to the rear shock absorber assemblies LH and RH with the 2 bolts (A) and 2 nuts.
      NOTE:

      Because the nuts have their own stoppers, do not turn the nuts. Tighten the bolts with the nuts secured.

      HINT:

      Insert the bolts with the threaded end facing the outside of the vehicle.

  6. INSTALL REAR COIL SPRING UPPER INSULATOR LH

    See step  1

  7. INSTALL REAR COIL SPRING UPPER INSULATOR RH

    HINT:

    Use the same procedure for the LH side.

  8. INSTALL REAR COIL SPRING LOWER INSULATOR LH

    See step  2

  9. INSTALL REAR COIL SPRING LOWER INSULATOR RH

    HINT:

    Use the same procedure for the LH side.

  10. INSTALL REAR COIL SPRING LH

    See step  3

  11. INSTALL REAR COIL SPRING RH

    HINT:

    Use the same procedure for the LH side.

  12. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

    See step  4

  13. TEMPORARILY TIGHTEN PARKING BRAKE ASSEMBLY LH
    1. Clean the installation surfaces of the parking brake assembly LH and rear axle beam assembly.
    2. Temporarily tighten the parking brake assembly LH to the rear axle beam assembly with the nut.
      NOTE:

      Do not twist the No. 3 parking brake cable assembly when installing the parking brake assembly.

      HINT:

      Fully tighten the nut after installing the rear axle hub and bearing assembly LH.

    3. Install the No. 3 parking brake cable assembly to the rear axle beam assembly with the bolt.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  14. TEMPORARILY TIGHTEN PARKING BRAKE ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  15. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH

    Refer to INSTALLATION [06/2015 - 11/2018]

  16. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  17. FULLY TIGHTEN PARKING BRAKE ASSEMBLY LH
    1. Fully tighten the nut.

      Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)

  18. FULLY TIGHTEN PARKING BRAKE ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  19. INSTALL REAR NO. 4 BRAKE TUBE
    1. Install the rear No. 4 brake tube to the rear axle beam assembly.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  20. INSTALL REAR NO. 3 BRAKE TUBE

    HINT:

    Use the same procedure for the rear No. 4 brake tube side.

  21. CONNECT REAR FLEXIBLE HOSE LH
    1. Install the rear flexible hose LH to the rear axle beam assembly.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    2. Using a union nut wrench, connect the rear flexible hose LH to the rear No. 4 brake tube.

      Specified tightening torque

      Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2015 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)

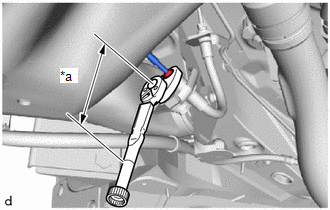

      GTY571329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
  22. CONNECT REAR FLEXIBLE HOSE RH
    1. Install the rear flexible hose RH to the rear axle beam assembly with a new clip.
      NOTE:
      • Install the clip as far as it will go.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
    2. Using a union nut wrench, connect the rear flexible hose RH to the rear No. 3 brake tube.

      Specified tightening torque

      Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2015 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)

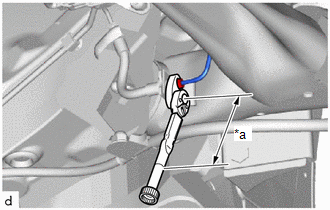

      GTY592691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
  23. INSTALL REAR DISC (for LH Side)

    Refer to PROCEDURE - Step 1

  24. INSTALL REAR DISC (for RH Side)

    HINT:

    Use the same procedure for the LH side.

  25. INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG
    1. Install the 2 parking brake shoe adjusting hole plugs to the rear disc.
  26. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY LH
    1. Install the rear disc brake cylinder assembly LH with the 2 bolts.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

    2. Install the rear brake tube flexible hose to the rear axle beam assembly.
      NOTE:
      • Install the clip as far as it will go.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
    3. Using a union nut wrench, connect the rear brake tube flexible hose to the rear No. 4 brake tube.

      Specified tightening torque

      Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

      NOTE:
      • Do not kink or damage the brake lines.
      • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

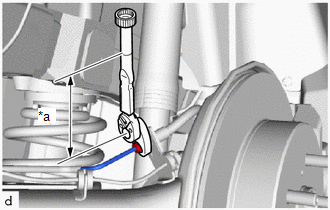

      GTY585387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2015 - ]

      • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 13.4 N*m (137 kgf*cm, 10 ft.*lbf)
  27. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  28. INSTALL SKID CONTROL SENSOR WIRE LH

    See step  5

  29. INSTALL SKID CONTROL SENSOR WIRE RH

    HINT:

    Use the same procedure for the LH side.

  30. INSTALL REAR SUSPENSION BRACE SUB-ASSEMBLY
    1. Install the rear suspension brace sub-assembly to the vehicle.

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

  31. INSTALL FRONT FLOOR CENTER COVER RH

    Refer to PROCEDURE - Step 8

  32. INSTALL FRONT FLOOR CENTER COVER LH

    Refer to PROCEDURE - Step 9

  33. ADD BRAKE FLUID
  34. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 11

  35. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

  36. BLEED BRAKE LINE

    Refer to BLEEDING [06/2015 - ]

  37. ADJUST PARKING BRAKE

    Refer to PROCEDURE - Step 19

  38. INSTALL REAR WHEEL

    Refer to PROCEDURE - Step 1

  39. STABILIZE SUSPENSION

    See step  17

  40. FULLY TIGHTEN REAR AXLE BEAM ASSEMBLY

    See step  8

  41. INSTALL REAR WHEEL HOUSE LINER LH

    See step  9

  42. INSTALL REAR WHEEL HOUSE LINER RH

    HINT:

    Use the same procedure for the LH side.

  43. INSPECT REAR WHEEL ALIGNMENT

    Refer to INSPECTION [06/2015 - ]

  44. PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION

    Refer to CALIBRATION [06/2015 - ]

  45. INSPECT ABS SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [06/2015 - ]

  46. ADJUST LANE DEPARTURE WARNING CAMERA

    Refer to ADJUSTMENT [06/2015 - 11/2018]

  47. PERFORM INITIALIZATION

    Refer to INITIALIZATION [06/2015 - ]
