Removal [06/2015 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY LH

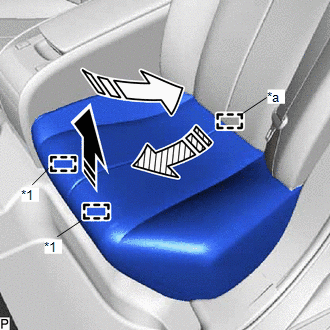

    1. Pull in the direction indicated by the arrows (1) in the illustration, lift up the front end portion of the rear seat cushion assembly LH to disengage the rear seat cushion lock hooks.
      GTY539590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Seat Cushion Lock Hook
      *a Rear Seat Cushion Frame Rear Hooks
      Remove in this Direction (1)
      Remove in this Direction (2)
      Remove in this Direction (3)
      NOTE:

      To avoid deforming the cushion frame, lift the cushion by holding the area close to the rear seat cushion lock hooks.

    2. Disconnect the connector.
    3. While pushing in the direction indicated by the arrows (2) in the illustration, disengage the hook at the rear of the rear seat cushion frame.
    4. Pull in the direction indicated by the arrows (3) in the illustration, pull out the rear seat inner LH from the belt slit of the rear seat cushion assembly LH to remove the rear seat cushion assembly LH.
  2. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE CONSOLE BOX CARPET

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR CONSOLE BOX

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEATBACK ASSEMBLY

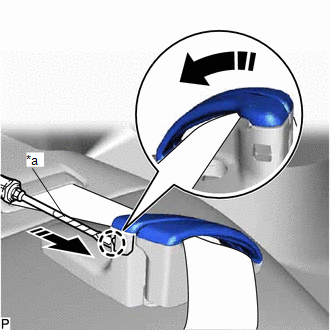

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw to open the cap of the rear seat shoulder belt guide.
      GTY545783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

      HINT:

      Use the same procedure to open all the caps of the rear seat shoulder belt guides.

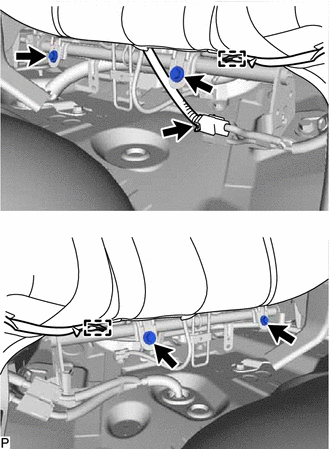

    2. Disconnect the connector.
      GTY579495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook and loop fastener to separate the rear seat 3-point type outer belt assembly RH and rear seat 3-point type outer belt assembly LH.
    4. Remove the 4 bolts.

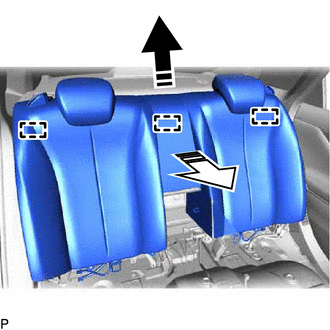

    5. Lift up in the direction indicated by the arrows (1) in the illustration to disengage the guides.
      GTY570224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    6. Pull in the direction indicated by the arrows (2) in the illustration to remove the rear seatback assembly.
      NOTE:
      • When moving the rear seatback assembly into the vehicle, perform the work with at least 2 people.
      • Be careful not to damage or scratch the vehicle body or body interior.
      • Do not damage the vehicle.
  7. REMOVE REAR SEAT CUSHION LOCK HOOK

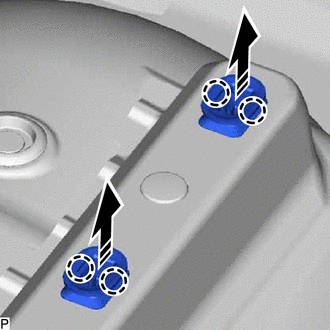

    1. Pull in the direction indicated by the arrows in the illustration, disengage the claws to remove the 2 rear seat cushion lock hooks.
      GTY560121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for both sides.
