Removal [06/2015 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

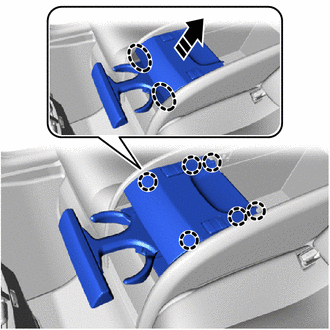

    1. Disengage the claws to remove the upper console panel sub-assembly as shown in the illustration.
      GTY595140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Disconnect the connector and disengage the clamp.
  4. REMOVE CONSOLE BOX CARPET

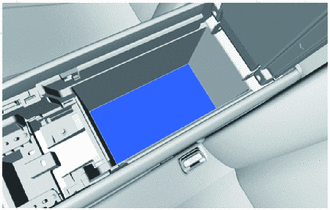

    1. Remove the console box carpet.
      GTY598148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CONSOLE BOX

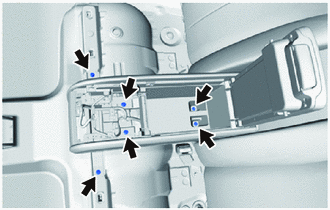

    1. Remove the 6 screws.
      GTY541458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamps.

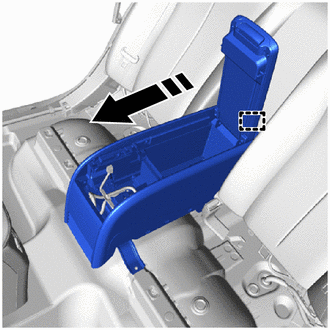

    3. Disengage the guide as shown in the illustration.
      GTY559867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

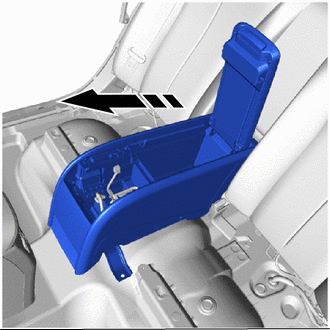

    4. Remove the rear console box as shown in the illustration.
      GTY566456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
