Removal [06/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 1 [11/2018 - ]

  2. REMOVE LOW PITCHED HORN ASSEMBLY

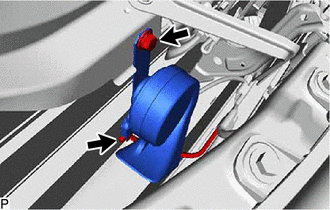

    1. Remove the bolt and low pitched horn assembly.
      GTY599716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  3. REMOVE HIGH PITCHED HORN ASSEMBLY

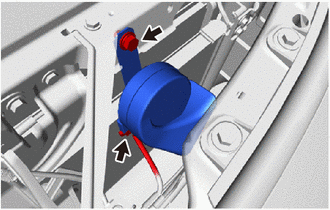

    1. Remove the bolt and high pitched horn assembly.
      GTY547962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
