Installation [06/2015 - ]: Procedure

1. Install the No. 3 parking brake cable assembly to the body with the 6 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

2. Install the No. 3 parking brake cable assembly to the parking brake plate sub-assembly with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Install the No. 2 parking brake cable clamp to the No. 3 parking brake cable assembly.
4. Install the No. 3 parking brake cable assembly to the body with the bolt.

   Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

HINT:

Use the same procedure as for the No. 3 parking brake cable assembly.

1. Install the cable support bracket to the body with the 3 nuts.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

2. Engage the 4 clamps to install the wire harness to the cable support bracket.

1. Install the No. 3 parking brake cable assembly to the parking brake equalizer sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Perform the same procedure as for the No. 2 parking brake cable assembly.

2. Install the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly to the cable support bracket with 2 new clips.

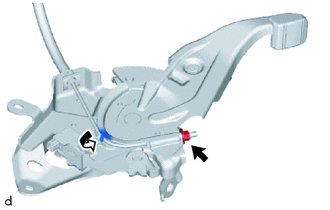

1. Pass the No. 1 parking brake cable assembly through the parking brake control pedal assembly.
2. Install the No. 1 parking brake cable assembly to the parking brake control pedal assembly with a new clip.
3. Bend the parking brake control pedal assembly claw.
   NOTE:

   Do not damage the No. 1 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Temporarily install the No. 1 wire adjusting nut.

Refer to INSTALLATION [06/2015 - ]

Refer to REASSEMBLY [06/2015 - 11/2018] , or refer to REASSEMBLY [11/2018 - ]

HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 30 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 30 [11/2018 - ]

Refer to INSTALLATION [06/2015 - ]
