Reassembly [06/2015 - 11/2018]: Procedure

  1. INSTALL REAR BUMPER SIDE SUPPORT LH

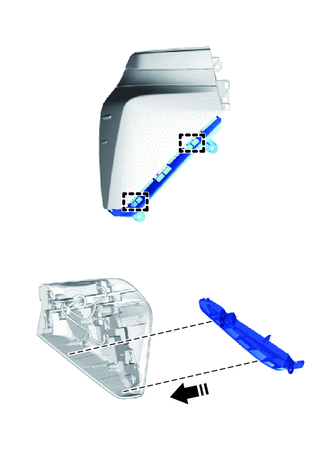

    1. Engage the guides to install the rear bumper side support LH as shown in the illustration.
      GTY571345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 2

  6. INSTALL REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL REAR BUMPER SIDE RETAINER LH

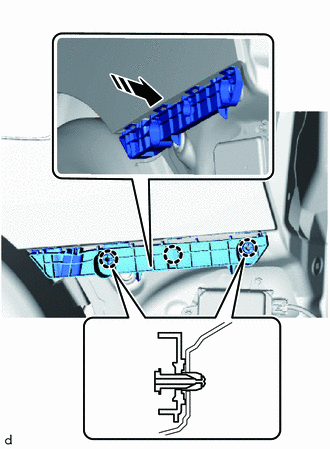

    1. Engage the claws to install the rear bumper side retainer LH as shown in the illustration.
      GTY547689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Do not forcibly engage the clip.

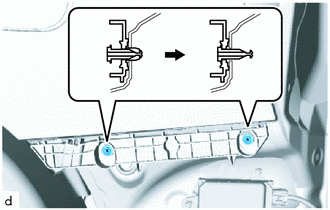

    2. Install the 2 clips as shown in the illustration.
      GTY562505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL REAR BUMPER ARM SUB-ASSEMBLY LH

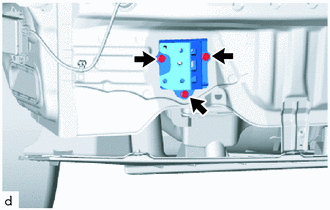

    1. Install the rear bumper arm sub-assembly LH with the 3 bolts.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      GTY562497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR BUMPER ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  11. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

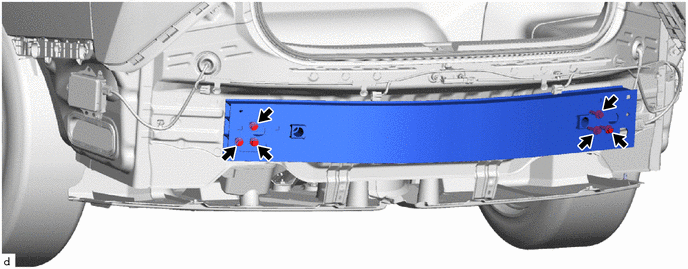

    1. Install the rear bumper reinforcement sub-assembly with the 6 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      GTY562494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR BUMPER PROTECTOR

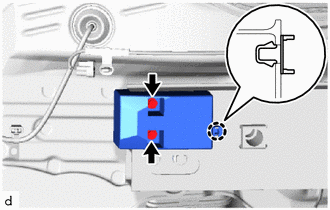

    1. Engage the claw to install the rear bumper protector.
      GTY562495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

      HINT:

      Use the same procedure for the RH side.

  13. INSTALL REAR BUMPER ENERGY ABSORBER
    1. Using a piece of cloth, rub off any double-side tape that remains on the rear bumper protector.
      NOTE:
      • Installing the rear bumper energy absorber while old double-sided tape remains can cause adhesion failure.
      • Using a screwdriver or similar tool to remove the old tape can damage the surface and cause adhesion failure.
    2. Using a non-residue solvent, clean the attachment surface.
    3. Remove the peeling paper on a new rear bumper energy absorber.

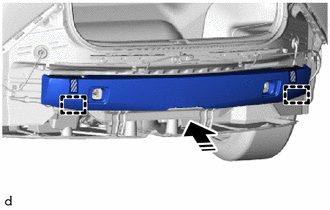

    4. Engage the guides to install the rear bumper energy absorber as shown in the illustration.
      GTY588659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
      Install in this Direction
      NOTE:

      Apply 2 pieces of double-sided type to the rear bumper energy absorber while pressing them into place.

  14. INSTALL REAR BUMPER PLATE LH

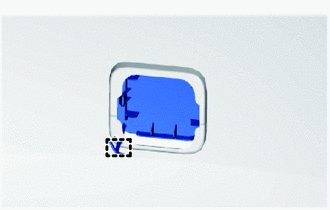

    1. Engage the hook.
      GTY562493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

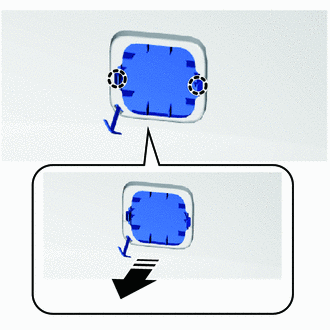

    2. Engage the claws to install the rear bumper plate LH as shown in the illustration.
      GTY544621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL REAR BUMPER PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL CENTER REAR BUMPER BRACKET

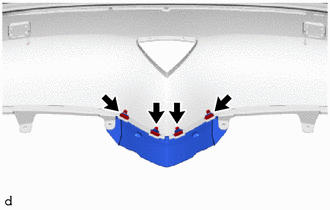

    1. Install the center rear bumper bracket.
      GTY562491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 outside moulding retainers.
  17. INSTALL REAR SIDE SPOILER SUB-ASSEMBLY LH

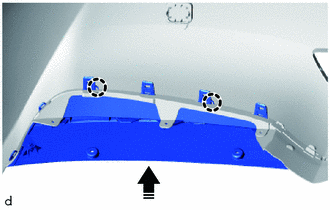

    1. Engage the claws to install the rear side spoiler sub-assembly LH as shown in the illustration.
      GTY588088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

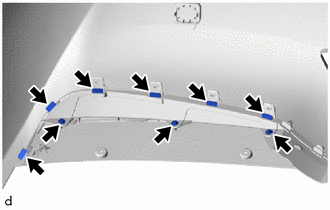

    2. Install the 6 outside moulding retainers.
      GTY602885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 screws.
  18. INSTALL REAR SIDE SPOILER SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  19. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER

    Refer to PROCEDURE - Step 2

  20. INSTALL NO. 2 ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 3

  21. INSTALL NO. 3 LUGGAGE ROOM WIRE

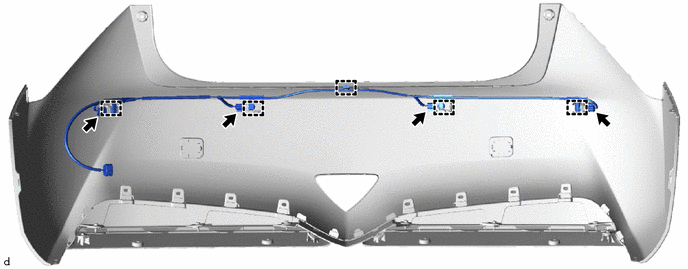

    1. Engage the clamps to install the No. 3 luggage room wire.
      GTY562719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 connectors.
  22. INSTALL REAR FOG LIGHT ASSEMBLY

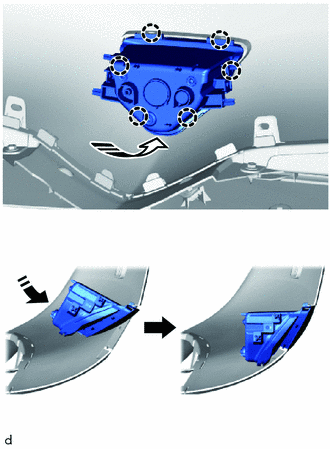

    1. Align the claws at the top of the rear fog light assembly, then engage the claws at the bottom of the rear fog light assembly as shown in the illustration to install the rear fog light assembly.
      GTY543549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

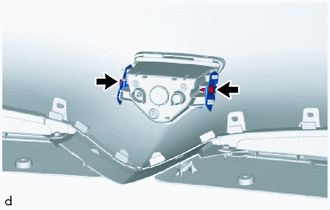

    2. Install the bracket A and bracket B with the 2 screws.
      GTY562507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
