Installation [06/2015 - ]: Procedure

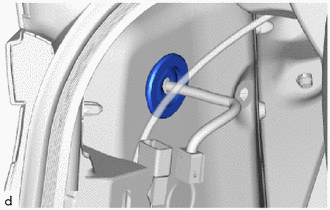

1. Pass the connector and grommet through the hole on the luggage compartment trim cover assembly into the cabin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fold back a part of the edge of the luggage compartment trim cover assembly and engage the grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Connect the connector.

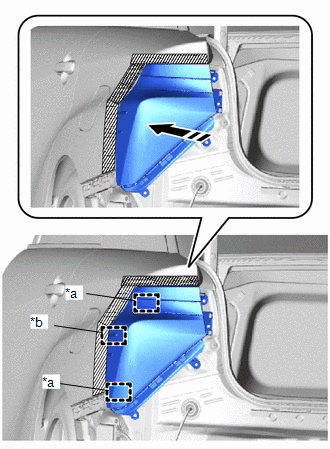

4. Engage the guide and pins.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide
   	Install in this Direction

5. Install the rear combination light assembly with the 4 screws.

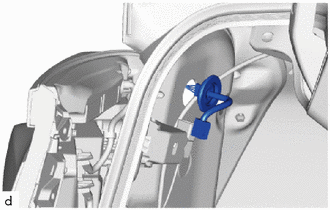

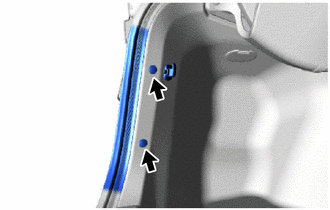

6. Install the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Engage the claws to install the rope hook.
8. Install the luggage compartment door weatherstrip.
9. Remove the protective tape.

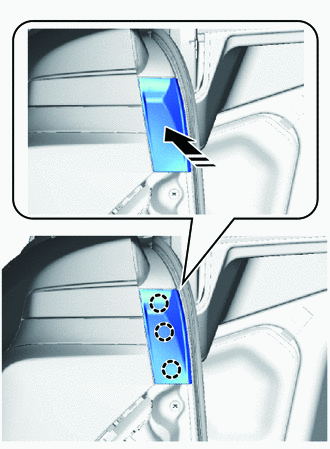

1. Engage the claws to install the rear combination light cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

Refer to INSTALLATION [06/2015 - 11/2018] , or refer to INSTALLATION [11/2018 - ]
