Reassembly [06/2015 - 11/2018]: Procedure

  1. INSTALL HOLE PLUG
    1. Install the 2 hole plugs.
      GTY594929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR DOOR PANEL CUSHION
    1. Engage the claw to install a new rear door panel cushion.
      GTY610125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 REAR DOOR WEATHERSTRIP

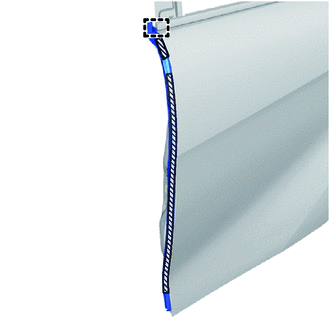

    1. Engage the guide to temporary install a new No. 3 rear door weatherstrip.
      GTY573095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-side tape
    2. Remove the release paper.
    3. Press the double-side tape area of the rear door weatherstrip.
  4. INSTALL NO. 2 REAR DOOR WEATHERSTRIP
    1. Engage the clips to install the rear door weatherstrip.
      GTY594932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR DOOR UPPER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 2

  6. INSTALL REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 3

  7. INSTALL REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 4

  8. INSTALL REAR DOOR WINDOW FRAME REAR MOULDING

    Refer to PROCEDURE - Step 5

  9. INSTALL REAR DOOR WINDOW FRAME UPPER MOULDING

    Refer to PROCEDURE - Step 6

  10. INSTALL REAR DOOR WINDOW FRAME FRONT MOULDING

    Refer to PROCEDURE - Step 7

  11. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. INSTALL REAR DOOR WEATHERSTRIP
    1. Clean vehicle installation surface.
    2. Engage the clips to install a new rear door weatherstrip.
      GTY559065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-side Tape
    3. Remove the release paper.
    4. Press the double-side tape area of the rear door weatherstrip.
    5. Install the 2 clips.
  13. INSTALL REAR DOOR CHECK ASSEMBLY
    1. Apply MP grease to the sliding areas of the rear door check assembly.
    2. Clean the bolt hole on the vehicle body.
    3. Clean the threads of the bolt.
    4. Apply adhesive to the threads of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

    5. Install the rear door check assembly with the 2 nuts and bolt.
      GTY594977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

      Nut

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

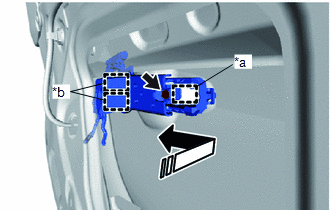

  14. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Apply MP grease to sliding areas of the rear door outside handle frame sub-assembly.
    2. Engage the grommet and guides to install the rear door outside handle frame sub-assembly as shown in the illustration.
      GTY586392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
      *b Guide
      Install in this Direction
    3. Using a T30 "TORX" socket wrench, install the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  15. INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD

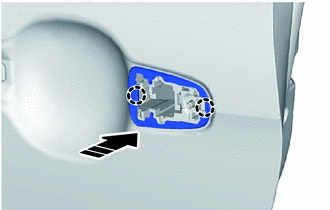

    1. Engage the claws to install the rear door rear outside handle pad.
      GTY592258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD

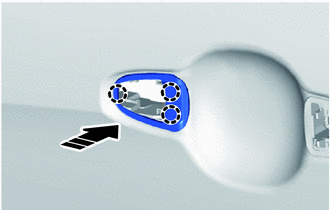

    1. Engage the claws to install the rear door front outside handle pad.
      GTY539812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

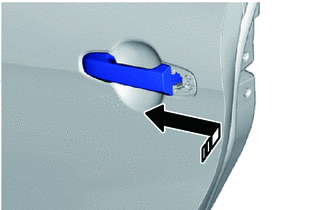

  17. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Install the rear door outside handle assembly as shown in the illustration.
      GTY604471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  18. INSTALL REAR DOOR OUTSIDE HANDLE COVER

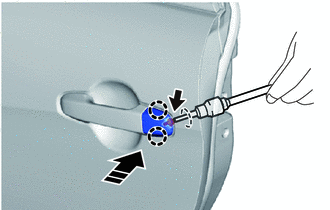

    1. Engage the claws to install the rear door outside handle cover as shown in the illustration.
      GTY576465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Using a T30 "TORX" socket wrench, install the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  19. INSTALL REAR DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  20. INSTALL REAR DOOR REAR GUIDE SEAL

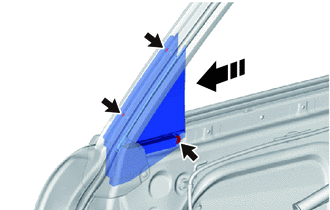

    1. Install the rear door rear guide seal as shown in the illustration.
      GTY583876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Raise up the rear door weatherstrip and then install the 2 screws.
    3. Install the screw.
    4. Engage the rear door weatherstrip.
  21. INSTALL REAR DOOR CUSHION
    1. Clean vehicle installation surface.
    2. Remove the release paper.
    3. Install a new rear door cushion with the 2 bolts.
      GTY593879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-side Tape
    4. Press the double-side tape area of the rear door cushion.
  22. INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY
    1. Apply MP grease to the sliding areas of the rear door window regulator sub-assembly.
    2. Temporarily install the temporary bolt to the rear door regulator sub-assembly.
      GTY610052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    3. Temporarily install the rear door window regulator sub-assembly.
    4. Tighten the temporary bolt and 5 bolts to install the rear door window regulator sub-assembly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the connector.
  23. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

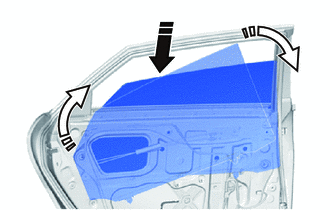

    1. Insert the rear door glass sub-assembly into the rear door glass run as indicated by the arrows in the order shown in the illustration.
      GTY597065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
      NOTE:

      Be careful not to damage the rear door glass sub-assembly.

    2. Install the rear door glass sub-assembly with the 2 bolts.
      GTY594956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  24. INSTALL REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY
    1. Install the rear door window rear lower frame sub-assembly with the bolt.
      GTY594957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Install the screw.
  25. INSTALL REAR DOOR FRAME GARNISH

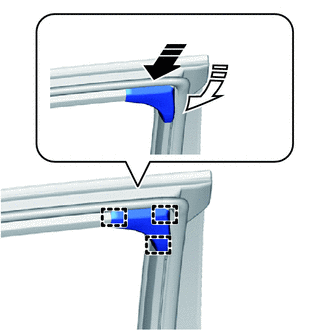

    1. Engage the guides to install the rear door frame garnish as shown in the illustration.
      GTY543953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

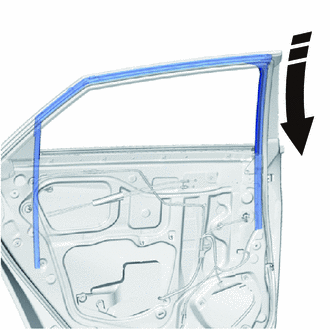

  26. INSTALL REAR DOOR GLASS RUN
    1. Install the rear door glass run as shown in the illustration.
      GTY550654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

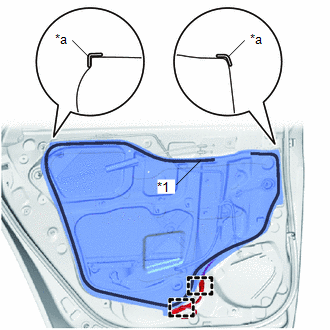

  27. INSTALL REAR DOOR SERVICE HOLE COVER
    1. Apply new butyl tape to the rear door panel.
      GTY557808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Butyl Tape
      *a Reference Point
    2. Pass the rear door lock remote control cable assembly and rear door inside locking cable assembly through a new rear door service hole cover.
    3. Install the rear door service hole cover according to the reference points on the rear door panel.
      NOTE:

      Securely install the rear door service hole cover preventing wrinkles and bubbles.

    4. Engage the clamps to install the wire harness.
  28. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

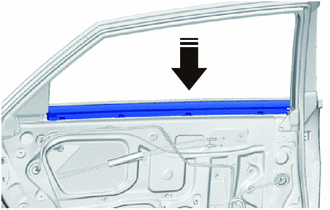

  29. INSTALL REAR DOOR GLASS INNER WEATHERSTRIP
    1. Install the rear door glass inner weatherstrip as shown in the illustration.
      GTY564579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  30. INSTALL REAR DOOR WIRE
    1. Engage the clamp to install the rear door wire to the rear door trim board sub-assembly.
      GTY594969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

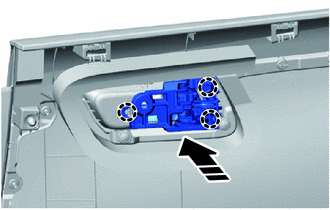

  32. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Engage the claws to install the rear door inside handle sub-assembly to the rear door trim board sub-assembly.
      GTY563932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  33. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. Engage the guides to install the rear door lock remote control cable assembly and rear door inside locking cable assembly.
      GTY555467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
    2. Connect the connector.
      GTY594961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

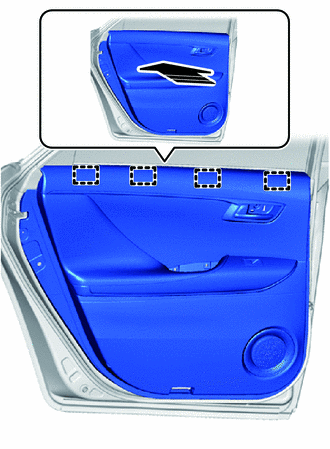

    3. Engage the clamps to install the rear door trim board sub-assembly as shown in the illustration.
      GTY604766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

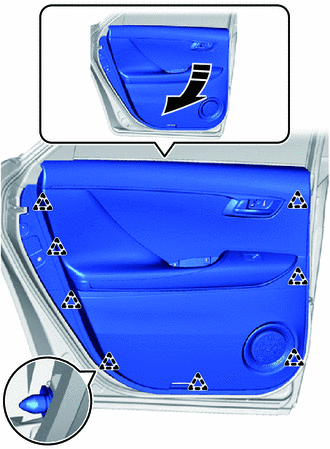

    4. Engage the clips as shown in the illustration.
      GTY540749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Install the 3 screws.
      GTY595018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  35. INSTALL NO. 1 REAR DOOR STIFFENER CUSHION
    1. Install the No. 1 rear stiffener cushion.
      GTY595019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

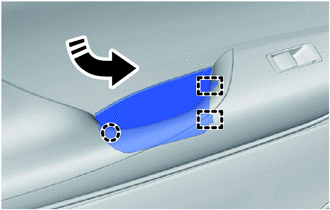

  36. INSTALL REAR DOOR ARMREST COVER
    1. Engage the guides and claw to install the rear door armrest cover.
      GTY546897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

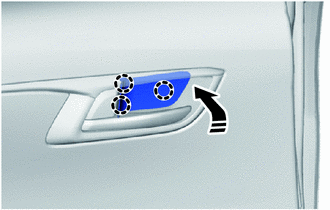

    1. Engage the claws to install the rear door inside handle bezel plug.
      GTY554413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  38. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  39. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

  40. INITIALIZE POWER WINDOW SYSTEM

    Refer to INITIALIZATION [06/2015 - ]

  41. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [06/2015 - ]
