Installation [06/2015 - ]: Procedure

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

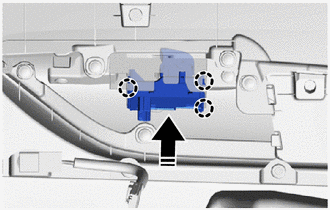

    1. Engage the claws to install the rear power window regulator switch assembly as shown in the illustration.
      GTY595090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 33 [11/2018 - ]

  3. INSTALL COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL NO. 1 REAR DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 35 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 35 [11/2018 - ]

  5. INSTALL REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 36 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 36 [11/2018 - ]

  6. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 37 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 37 [11/2018 - ]
