Reassembly [06/2015 - ]: Procedure

  1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

    See step  1

  4. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 1

  5. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  6. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  7. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. INSTALL DOOR UNLOCK SWITCH SUB-ASSEMBLY
    1. Engage the guides to install the door unlock switch sub-assembly to the luggage compartment door lock cylinder assembly.
      GTY579555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

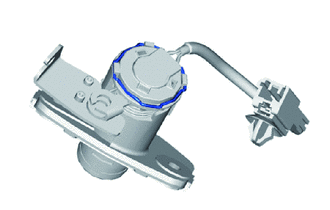

    2. Install the C-ring.
      GTY579554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. Engage the guide to install the luggage door lock control cable sub-assembly.
      GTY564225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the luggage compartment door lock cylinder assembly with the 2 bolts.
      GTY561910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

    3. Engage the clamp.
    4. Connect the connector.
  11. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION
    1. Engage the claws to install 4 new the luggage compartment door cushions.
      GTY579550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH
    1. Install the luggage compartment door hinge cover RH with the clips.
      GTY561929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

    HINT:

    Use the same procedure described for the RH side.

  14. INSTALL LUGGAGE COMPARTMENT DOOR COVER
    1. Install the luggage compartment door cover with the clips.
      GTY563604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    1. Install the luggage compartment door assist grip with the 2 screws.
      GTY561928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

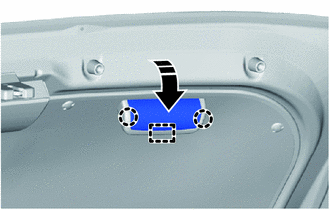

    2. Engage the guide and claws to close the cover as shown in the illustration.
      GTY605669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

    Refer to PROCEDURE - Step 2

  17. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

    Refer to PROCEDURE - Step 3
