Installation [06/2015 - ]: Procedure

  1. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 1

  2. INSTALL REAR LIGHT ASSEMBLY LH

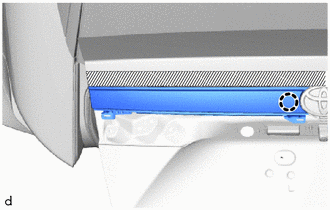

    1. Engage the claw to install the rear light assembly LH.
      GTY562522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the 4 nuts and connect the connector at the time of installing the luggage compartment door outside garnish sub-assembly.

  3. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 14
