Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    See step  1

  2. REMOVE REAR FLOOR FINISH PLATE

    See step  5

  3. REMOVE REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  5. REMOVE NO. 1 LUGGAGE COMPARTMENT UPPER COVER LH
    1. Using a clip remover, disengage the clips.

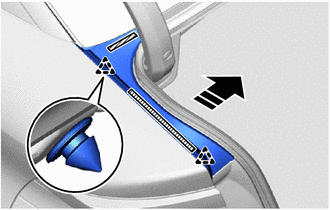

      GTY608913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-side Tape
      Remove in this Direction
    2. Remove the double-side tape and No. 1 luggage compartment upper cover LH.
      NOTE:

      Remove any remaining double-side tape from the rear door panel.

  6. REMOVE NO. 1 LUGGAGE COMPARTMENT UPPER COVER RH

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
    1. As shown in the illustration, remove the luggage compartment door weatherstrip while avoiding the trunk panel (luggage compartment door).

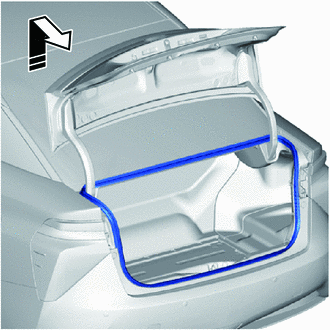

      GTY586483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      While removing, do not allow the non-drying sealer to adhere to the vehicle body or trunk panel (luggage compartment door).
