Disassembly [06/2015 - ]: Procedure

  1. REMOVE HOOD TO RADIATOR SUPPORT SEAL
    1. Using a clip remover, disengage the clips to remove the hood to radiator support seal.

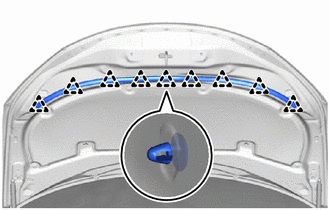

      GTY541152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HOOD INSULATOR
    1. Using a clip remover, remove the 6 clips.

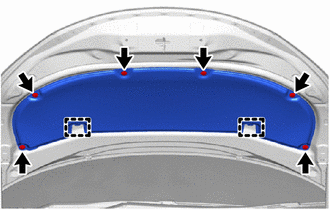

      GTY561912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the hood insulator.
  3. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. DISCONNECT WASHER HOSE
    1. Disengage the clamps to separate the washer hose.

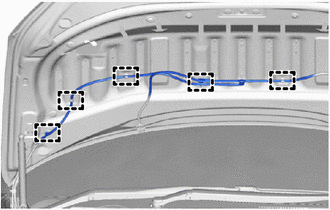

      GTY561911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
