Removal [06/2015 - ]: Procedure

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

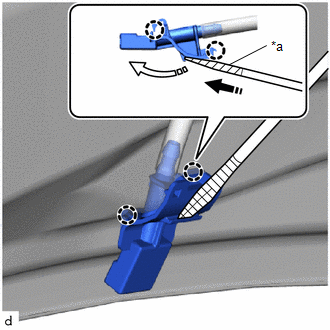

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws in the order shown in the illustration.
      GTY606111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Do not damage the windshield glass.

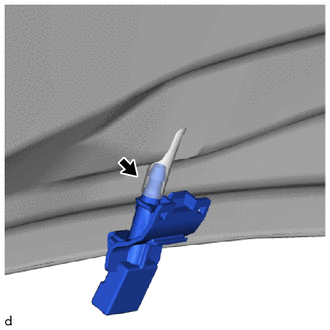

    2. Disconnect the washer nozzle sub-assembly from the washer hose and remove the washer nozzle sub-assembly.
      GTY597440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Washer nozzle sub-assembly cannot be reused.
